Valve Cv Liquid, Gas, Steam Excel Calculation Tool


1. Presentation of the tool
2. Link to the Excel tool

1. Introduction

Calculate the required flow coefficient Cv of control valves thanks to this  Excel calculation tool. Simply input the valve data and the flow data - flowrate, pressure, temperature when relevant - then the tool will calculate the Cv required for getting the required flow at the required pressure drop. The tool can also be done to calculate the flow through the valve knowing the Cv and the pressure drop. Simply make a goal seek on the Cv varying the flowrate.

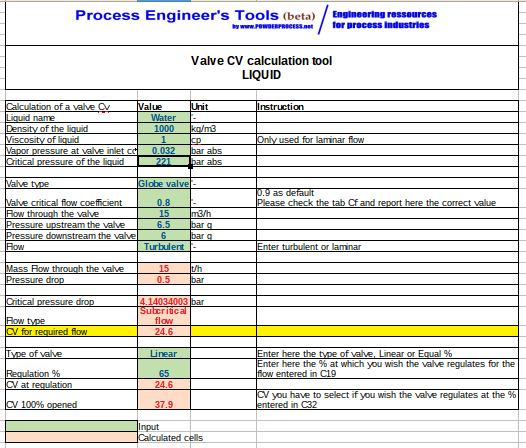

2. Excel calculation tool
