 # Valve Cv calculation in laminar flow

Follow us on Twitter 1. Cv and Kv definition
2. Calculation of Cv of a valve in laminar flow
3. Calculation example

## 1. Cv and Kv definition

### What is the flow coefficient Cv and Kv - calculation of flow through a valve - SI units

Please refer to the valve flow coefficient page of Process Engineer's tools.

## 2. Calculation of Cv of a valve in laminar flow

### What is the required Cv of a valve used in laminar flow ?

The principle behind sizing a control valve for laminar flow is to calculate a correction factor to apply to the Cv calculated for turbulent flow.

Cv_corrected = Cv_turbulent / FR

With

Cv_turbulent = Cv calculated with regular Cv equations for turbulent liquid flow
FR = correction factor

The correction factor FR can be calculated with the following step by step guide :

STEP 1 : calculate Cv_turbulent

Calculate the Cv in turbulent flow thanks to the following equation, explained in detail in this page. STEP 2 : select a valve and define its rated Cv [Baumann]

From the Cv calculated above, select in a catalogue a valve of the type you wish to use with a Cv greater than the one calculated for turbulent flow (some source propose to select a rated Cv 90% higher than the turbulent Cv [Valve World]). Read the rated Cv of this valve (higher than turbulent Cv), and get from the manufacturer brochure the following data :

• FL = pressure recovery factory (critical flow factor)
• Fd = valve style modifier ; if unknow, the following values are given by [Baumann] for valves having a Cv > 0.1
• Single seated, parabolic plug = 0.46
• Double seated, parabolic plug = 0.32
• Butterfly valve = 0.57
• Segmented ball valve = 0.98 (when wide open), larger than 6 inches
• Eccentric rotary plug valves = 0.42

STEP 3 : calculate the Reynolds of the valve [Baumann] [Valve Wolrd]

The Reynolds number for the valve can be calculated by Rev = (17000*Fd*q)/(ν.[CvR*FL]0.5) : With

Rev = Reynolds of the valve (-)
Fd = valve style modifier (see STEP 2)
q = flow through the valve (gpm)
CvR = rated Cv of the valve considered (see STEP 2)
FL = pressure recovery factory (critical flow factor) (see STEP 2)
ν = kinematic viscosity (centistokes, 10-6 m/s2) = μ/d
μ = dynamic viscosity (cP)
d = density of the liquid

Or, in metric units, Rev = (76000*Fd*q)/(ν.[CvR*FL]0.5) : With Rev = Reynolds of the valve (-)
Fd = valve style modifier (see STEP 2)
q = flow through the valve (m3/h)
CVR = rated Cv of the valve considered (see STEP 2)
FL = pressure recovery factory (critical flow factor) (see STEP 2)
ν = kinematic viscosity (centistokes, 10-6 m/s2) = μ/d
μ = dynamic viscosity (cP)
d = density of the liquid

STEP 4 : Calculation of Cv/d2 [Valve World]

The calculation of Cv/d2 is required for the next steps of the valve sizing. d is the inlet diameter the valve selected at step 2. Be careful, it should be expressed in inches.

STEP 5 : Calculation of FR [Baumann]

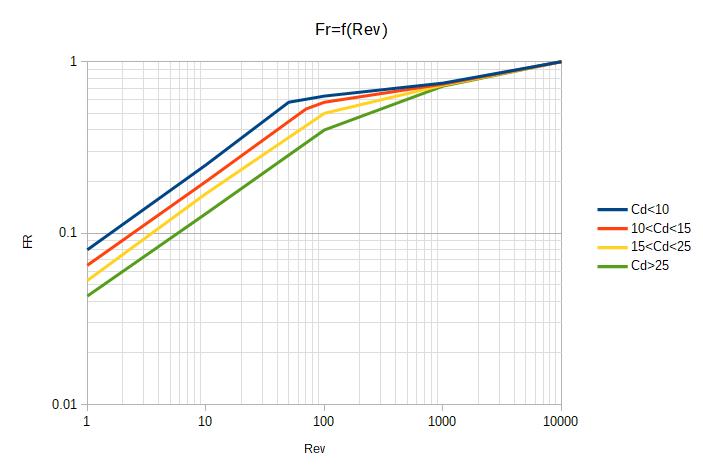

The factor FR can be determined from Rev and Cd=Cv/d2 thanks to an abacus given by [Baumann]. Blue curve : Cd<10, globe valves
Red curve : 10<Cd<15, globe valves and eccentric rotary plug valves
Orange curve : 15<Cd<25, butterfly valves
Green curve : Cd>25, ball valves and very small valve with Cd<1

STEP 6 : Calculation of Cv_corrected

Cv_corrected can thus be calculated thanks to Cv_turbulent / FR with Cv_turbulent calculated at Step 1 and FR calculated at step 2.

STEP 7 : Compare Cv_corrected to Cv_assumed [Valve Wolrd]

The Cv_corrected is compared the Cv assumed at step 2.

If Cv_corrected < Cv_assumed with Cv_corrected ~ 0.5*Cv_assumed, then the valve selected is fine for laminar flow.

If Cv_corrected > 0.8*Cv_assumed or even Cv_corrected > Cv_assumed, then the calculated must be repeated by selecting a valve with a higher Cv_assumed, advised to be 90% higher of the original value.

## 3. Calculation example

Considering a liquid of a viscosity of 1000 centistokes, with a density 0.9, what is the valve Cv required to ensure a pressure drop of 25 Psig for a flow of 30 gpm ?

STEP 1 : calculate the Cv turbulent

Cv_turbulent = q.(d/DP)0.5 = 30*(0.9/25)0.5 = 5.7

STEP 2 : select a valve

The Engineer wishes to use a globe valve of inlet diameter 1 inch. He anticipates a higher Cv required 90% higher than Cv turbulent, which means a Cv of 10.8.

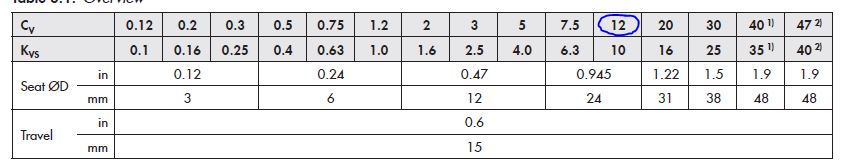

Looking in a catalogue for Globe valve, the Engineer finds a model with a Cv of 12. The Engineer selects this valve. FL = 0.95 according to the manufacturer. The coefficient Fd is 0.46 according to paragraph 2.

STEP 3 : calculate the Reynolds number of the valve

Rev = (17000*Fd*q)/(ν.[CvR*FL]0.5) = (17000*0.46*30)/(1000*(12*1)0.5) = 67.7

STEP 4 : Calculation of Cv/d2

Cv/d2 = 12/12 = 12

STEP 5 : Calculation of FR

FR is calculated from the Abacus given in section 2 step 5. In the present case, it is 1st necessary to calculate Cd=Cv/d2 = 12 then check the 2nd curve on the graph for Rev=67.7

FR = 0.52

STEP 6 : calculate the Cv for laminar flow

Cv_corrected = Cv_turbulent / FR = 5.7/0.52 = 10.96

STEP 7 : control the value calculated

The Cv corrected is equal to 10.96 while the valve selected has a Cv of 12. 10.96/12 = 0.91.

The valve would regulate at 91% of its maximum Cv. It is too high, it could be advised to re-run the calculation by selecting a slightly bigger valve, for example with a Cv of 20. Source
