1. Introduction to HVAC Air Flow and Duct Sizing

Why are proper air flow and duct sizing important in HVAC systems?

Heating, Ventilation, and Air Conditioning (HVAC) systems are the backbone of indoor environmental control, ensuring comfort, air quality, and energy efficiency in buildings. At the core of these systems lies the critical interplay between air flow and duct sizing. Properly designed air distribution networks directly influence system performance, energy consumption, and occupant satisfaction, and in sterile facilities such as pharmaceutical manufacturing, maintaining aseptic zone overpressure is essential for product integrity, as described in our feed throat cooling requirement and in the optimal reflux ratio selection guide. For guidance on scaling laboratory processes to industrial production, throughput scaling for size reduction, and for detailed thermal resistance analysis of multilayer slabs, explore our comprehensive guide on thermal resistance in multilayer slabs.

Air flow, measured in cubic feet per minute (CFM) or cubic meters per second (m³/s), is the lifeblood of HVAC systems. It serves as the medium for distributing conditioned air, maintaining uniform temperatures, and ensuring adequate ventilation. The required air flow is dictated by the building’s heating and cooling loads. A common rule of thumb is 350 to 400 CFM per ton of cooling capacity, though this varies with climate. In humid regions, lower CFM values (e.g., 300–350) enhance dehumidification, while drier climates may require higher values to meet cooling demands. For a technical reference on drying rate distribution in tray, bed, and belt systems, view the detailed guide on particulate drying with gas-solid contact enhancement.

Duct sizing is the process of determining the optimal dimensions of ductwork to deliver the required air flow efficiently. Properly sized ducts are critical for three reasons:

• System Efficiency: Minimizes friction and pressure drop, reducing fan energy consumption.
• Comfort: Ensures even air distribution, preventing hot or cold spots and minimizing noise.
• System Longevity: Reduces strain on components like fans and motors, extending equipment life.

This article delves into the fundamental principles, formulas, and practical considerations for HVAC air flow and duct sizing, including the calculation of hydraulic diameter for non‑circular ducts, providing a comprehensive guide for effective system design. For a parallel example of product sizing in another industry, see our pet food kibble sizing guide.

2. Fundamental Concepts and Formulas

What are the key formulas for HVAC heat transfer and duct sizing?

2.1. Heat Transfer in HVAC Systems: Sensible, Latent, and Total Heat

Air flow in HVAC systems facilitates the transfer of both sensible and latent heat, essential for conditioning indoor spaces.

Sensible Heat (\(h_s\)) refers to the energy exchanged that changes air temperature without altering its moisture content. It is calculated using:

\[ h_s = c_p \cdot \rho \cdot q \cdot \Delta T \]

where:

• \(h_s\) = sensible heat (kW)
• \(c_p\) = specific heat of air (\(\approx 1.006\text{ kJ/kg}\cdot^\circ\text{C}\))
• \(\rho\) = air density (\(\approx 1.202\text{ kg/m}^3\))
• \(q\) = air volume flow (\(\text{m}^3\text{/s}\))
• \(\Delta T\) = temperature difference (\(^\circ\text{C}\))

In Imperial units, the simplified formula is commonly used, with 1.08 accounting for standard air properties (\(\rho = 0.075\text{ lb/ft}^3\), \(c_p = 0.24\text{ Btu/lb}\cdot^\circ\text{F}\)) and unit conversions (\(60\text{ min/hr}\)):

\[ h_s \text{ (Btu/hr)} \approx 1.08 \times \text{CFM} \times \Delta T \text{ (}^\circ\text{F)} \]

Latent Heat (\(h_l\)) is the energy absorbed or released during moisture content changes (e.g., condensation or evaporation) without temperature change; for details on moisture loss in blast‑freezing processes, see moisture loss in blast freezing processes.

\[ h_l = h_{we} \cdot \rho \cdot q \cdot \Delta w_{\text{kg}} \]

where:

• \(h_l\) = latent heat (kW)
• \(h_{we}\) = latent heat of evaporation (\(\approx 2454\text{ kJ/kg}\))
• \(\Delta w_{\text{kg}}\) = humidity ratio difference (\(\text{kg water/kg dry air}\))

In Imperial units, the simplified formula utilizes humidity ratio in grains per pound of dry air (\(7000\text{ grains} = 1\text{ lb}\)):

\[ h_l \text{ (Btu/hr)} \approx 0.68 \times \text{CFM} \times \Delta w_{\text{grains}} \]

Total Heat (\(h_t\)) is the sum of sensible and latent heat, representing the total energy change in the air:

\[ h_t = h_s + h_l \quad \text{or} \quad h_t = \rho \cdot q \cdot \Delta h \]

Calculation Example:
For air at \(1\text{ m}^3\text{/s}\) cooled by \(20^\circ\text{C}\) with a humidity ratio drop of \(0.0112\text{ kg/kg}\):

• Sensible Heat (\(h_s\)):
  \(h_s = (1.006\text{ kJ/kg}^\circ\text{C}) \times (1.202\text{ kg/m}^3) \times (1\text{ m}^3\text{/s}) \times (20^\circ\text{C}) = \mathbf{24.2\text{ kW}}\)
• Latent Heat (\(h_l\)):
  \(h_l = (2454\text{ kJ/kg}) \times (1.202\text{ kg/m}^3) \times (1\text{ m}^3\text{/s}) \times (0.0112\text{ kg/kg}) = \mathbf{33.0\text{ kW}}\)
• Total Heat (\(h_t\)):
  \(h_t = 24.2\text{ kW} + 33.0\text{ kW} = \mathbf{57.2\text{ kW}}\)

This corresponds to an enthalpy change (\(\Delta h\)) of \(\approx 47.6\text{ kJ/kg}\).

2.2. Duct Sizing Principles and Formulas

Duct sizing aims to determine dimensions that deliver the required air flow while maintaining acceptable air velocity and pressure drop.

Basic Sizing Formula:
The cross-sectional area is calculated as:

\[ \text{Area (m}^2\text{)} = \frac{\text{Flow Rate (m}^3\text{/s)}}{\text{Velocity (m/s)}} \quad \text{or} \quad \text{Area (ft}^2\text{)} = \frac{\text{CFM}}{\text{Velocity (FPM)}} \]

Air Velocity Limits:

• Lower Limit: Below \(2.0\text{ m/s}\) (\(\approx 400\text{ FPM}\)) can cause poor air mixing and temperature stratification.
• Upper Limit: Above \(4.0\text{ m/s}\) (\(\approx 800\text{ FPM}\)) in branch ducts near diffusers can generate excessive acoustic noise. Main supply trunks may operate up to \(7.5\text{ m/s}\) (\(\approx 1500\text{ FPM}\)).

Pressure Drop:
Friction causes pressure loss, which the fan must overcome. A common design target is \(\le 1.0\text{ Pa/m}\) (\(\approx 0.1\text{ in. wg/100 ft}\)). The Darcy-Weisbach equation calculates dynamic pressure drop per unit length:

\[ \frac{\Delta P}{L} = f \cdot \frac{1}{D_h} \cdot \left( \frac{\rho \cdot v^2}{2} \right) \]

where \(f\) is the Darcy friction factor, \(D_h\) is the hydraulic diameter (\(D_h = \frac{2 a b}{a + b}\) for rectangular ducts of sides \(a\) and \(b\)), \(\rho\) is air density, and \(v\) is mean air velocity.

3. Practical Applications and Methods

How do you apply duct sizing principles in a real-world scenario?

3.1. Duct Sizing Example: A 2-Ton System

Let’s size the main duct for a 2-ton cooling system.

Step 1: Determine Required Air Flow
Using 400 CFM/ton:
\(\text{Air Flow} = 2\text{ tons} \times 400\text{ CFM/ton} = \mathbf{800\text{ CFM}}\)

Step 2: Convert to Metric Units
\(\text{Flow Rate } (q) \approx 0.378\text{ m}^3\text{/s}\) (\(1360\text{ m}^3\text{/h}\))

Step 3: Select Velocity and Calculate Area
Target velocity = \(4.5\text{ m/s}\):
\(\text{Area} = \frac{0.378\text{ m}^3\text{/s}}{4.5\text{ m/s}} = \mathbf{0.084\text{ m}^2}\)

Step 4: Determine Duct Dimensions

• Circular Duct:
  \(\text{Diameter} = \sqrt{\frac{4 \times 0.084}{\pi}} \approx 0.327\text{ m} \text{ (327 mm)}\). Select standard size: 325 mm.
• Rectangular Duct (Height = 300 mm):
  \(\text{Width} = \frac{0.084\text{ m}^2}{0.30\text{ m}} = \mathbf{0.28\text{ m (280 mm)}}\).
  Required size: 300 mm × 280 mm.

3.2. Air Flow Measurement in the Field: The Temperature Rise Method

This method estimates air flow through furnaces or air handlers during commissioning.

Gas/Oil Furnaces:

\[ \text{CFM} = \frac{\text{BTU Output}}{1.08 \times \Delta T} \]

Example: 100,000 BTU/hr with \(\Delta T = 50^\circ\text{F}\):
\(\text{CFM} \approx \mathbf{1,852}\).

Electric Heat Systems:

\[ \text{CFM} = \frac{\text{Voltage} \times \text{Amperage} \times 3.414}{1.08 \times \Delta T} \]

Example: 75 A at 235 V with \(\Delta T = 36^\circ\text{F}\):
\(\text{CFM} \approx \mathbf{1,548}\).

4. Consequences of Incorrect Sizing and Industry Standards

What happens if HVAC ducts are sized incorrectly and what standards should be followed?

4.1. Consequences of Improper Duct Sizing

• Undersized Ducts: Excessive air velocity causes severe friction loss, increased fan power consumption, acoustic noise, and potential evaporator coil freezing due to restricted airflow.
• Oversized Ducts: Low velocity leads to poor room air entrainment, thermal stratification, high material cost, and unnecessary ceiling plenum space consumption.

4.2. Industry Standards and Design Tools

Adherence to recognized industry standards ensures acoustic comfort, indoor air quality, and mechanical longevity:

• ASHRAE: Fundamentals Handbook provides friction charts, fitting loss coefficients, and ambient load sizing.
• SMACNA: Standards for sheet metal duct construction, reinforcement schedules, and leakage testing.
• DW/144: Standard specification for sheet metal ductwork in the UK and European practice.

5. HVAC Duct Sizing & Air Flow Free Online & Excel Calculators

Warning: This calculator is provided for educational and preliminary engineering estimation. It is not intended for detailed procurement or certified construction design.

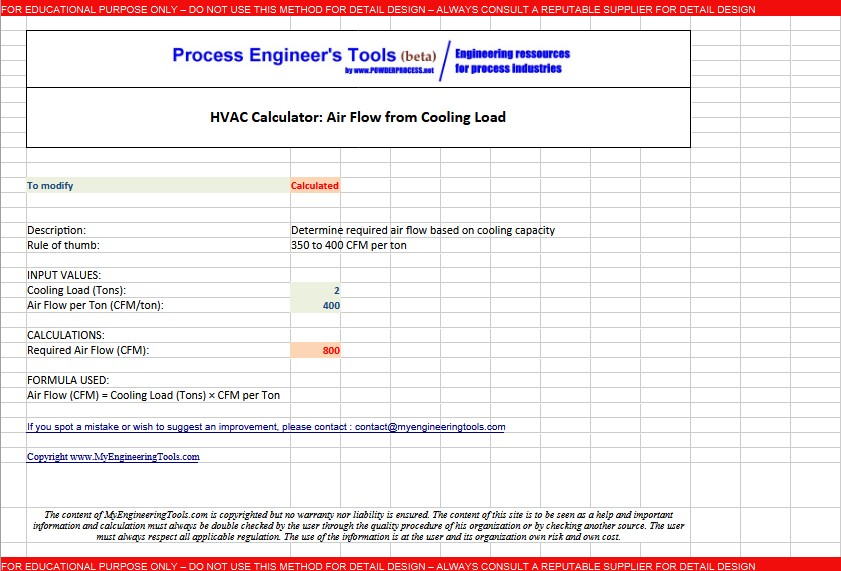

5.1 Excel Spreadsheet Tool (click here to show / hide)

You can download the reference Excel calculator here: HVAC_Cooling_Loads_Calculators.xlsx

5.2 Legacy Standalone Tools (click here to show / hide)

1. Air Flow from Cooling Load Calculator

Determine the required air flow based on the cooling capacity of the system. The article suggests a rule of thumb of 350 to 400 CFM per ton. For a detailed refrigeration load calculation, consult our Heat Pump Design guide. For granular media or particulate filtration in HVAC design, understanding bulk density is essential—retort loading density optimization—the Hausner ratio calculation for bulk density provides the necessary methodology, and for retort vent size and location considerations, see our Retort vent design guide—applying log‑normal distribution fitting for particle size distribution (PSD) can further refine filter performance analysis, Sauter mean diameter calculation.

Cooling Load Tons Air Flow per Ton CFM/ton

Required Air Flow: 800 CFM

Formula Used

\[ \text{Air Flow (CFM)} = \text{Cooling Load (Tons)} \times \text{CFM per Ton} \]

2. Duct Sizing Calculator

Calculate the required duct area and dimensions based on air flow and a target velocity. The article recommends target velocities below 4 m/s (800 FPM) in branch ducts to avoid excessive noise. For more on how air velocity affects freezing rates, see freezing rate effect on ice crystal size, and for capacity sizing in a spiral freezer, consult our spiral freezer capacity calculation guide.

Air Flow Rate CFM Target Velocity m/s Rectangular Duct Height mm

Required Area:0.084 m² Circular Duct Diameter:327 mm Rectangular Duct Width:280 mm

Formula Used

\[ \text{Area (m²)} = \frac{\text{Flow Rate (m³/s)}}{\text{Velocity (m/s)}} \]

3. Heat Load Calculator (Imperial)

Calculate the sensible, latent, and total heat load of an air stream based on the simplified Imperial unit formulas provided in the article, and consult the air change heat load guide for deeper analysis. The article recommends target velocities below 4 m/s (800 FPM) in branch ducts to avoid excessive noise. For more on how air velocity affects freezing rates, see fluidized bed freezing for individual quick freezing (IQF).

Air Flow Rate CFM Temperature Difference °F Humidity Ratio Difference grains/lb

Sensible Heat (\(h_s\)):21,600 Btu/hr Latent Heat (\(h_l\)):6,800 Btu/hr Total Heat (\(h_t\)):28,400 Btu/hr

Formulas Used

\[ h_s \text{ (Btu/hr)} \approx 1.08 \times \text{CFM} \times \Delta T \text{ (°F)} \] \[ h_l \text{ (Btu/hr)} \approx 0.68 \times \text{CFM} \times \Delta w \text{ (grains/lb)} \] \[ h_t = h_s + h_l \]

4. Air Flow Estimation (Temperature Rise)

Estimate the air flow through a furnace or air handler using the temperature rise method, as described in the article.

System Type Gas / Oil Furnace Electric Heat BTU Output BTU/hr Voltage V Amperage A Temperature Rise (Delta-T) °F

Estimated Air Flow: 1,852 CFM

Formulas Used

Gas/Oil: \[ \text{CFM} = \frac{\text{BTU Output}}{1.08 \times \Delta T} \] Electric: \[ \text{CFM} = \frac{\text{Voltage} \times \text{Amperage} \times 3.414}{1.08 \times \Delta T} \]
