1. Introduction

What is the purpose of this article on compressor selection?

Compressor selection is a critical task for process engineers, impacting both capital expenditure and long-term operational efficiency. This article outlines a structured workflow for selecting the appropriate compressor for a given application, emphasizing the key parameters and calculations required. Think of this as a guide to help you navigate the complexities of compressor selection.

1.1. Overview of Compressor Selection

What factors should be considered when selecting a compressor?

Selecting the right compressor demands a holistic evaluation, considering application-specific requirements, gas properties, operating conditions, and economic constraints. The goal is to identify the compressor type and configuration that delivers the required performance with optimal efficiency, reliability, and cost-effectiveness.

The initial step involves a thorough definition of the application. This includes specifying the gas composition, required inlet and outlet pressures, desired flow rate, and any specific process requirements. Following this, a detailed assessment of several key factors is necessary:

• Gas Properties: Accurate determination of the gas's molecular weight, specific heat ratio (n-value), critical pressure, critical temperature, and compressibility (Z) is crucial.
• Pressure and Temperature: Precise specification of inlet and outlet pressures and temperatures, including absolute and gauge values, is essential for correct calculations.
• Capacity Specifications: Understanding and converting between different capacity units such as ICFM, SCFM, and mass flow rates is necessary to ensure the selected compressor meets flow demands.
• Site Conditions: Altitude, ambient temperature range, and cooling water availability significantly impact compressor performance.

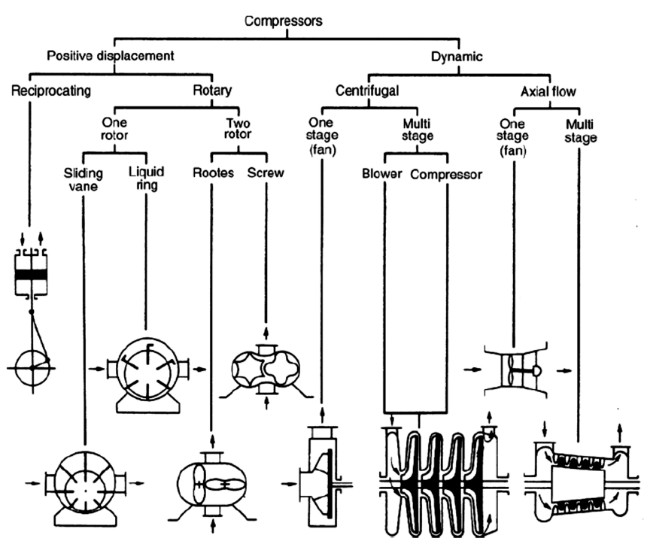

• Compressor Types: Evaluating the suitability of different compressor types (e.g., reciprocating, centrifugal, rotary screw, axial) and configurations (single-stage vs. multi-stage).
• Cost and Economic Factors: Balancing initial capital cost with long-term operating and maintenance costs, including energy consumption and potential downtime.
• Reliability and Availability: Selecting a compressor that meets the required reliability and availability standards for the application is essential for minimizing process disruptions.
• Scope of Supply: Defining the scope of supply, including the compressor package, driver (motor, turbine, etc.), control system, and auxiliary equipment.

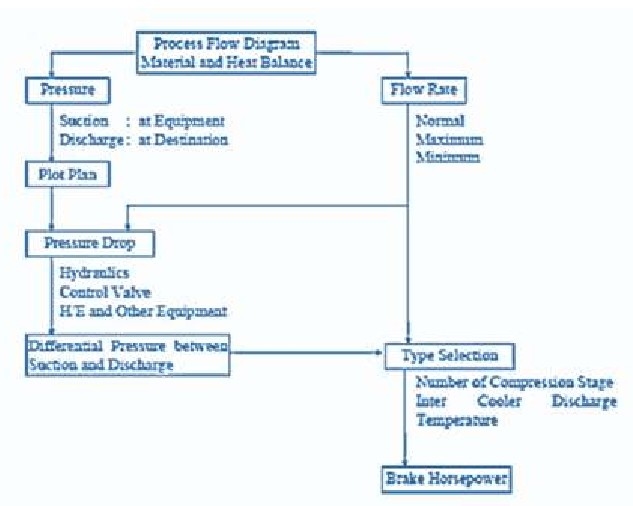

The selection process often involves iterative calculations and comparisons of different compressor options to identify the compressor that best meets the specific needs of the application.

1.2. Importance of a Structured Workflow

Why is a structured workflow important for compressor selection?

Compressor selection is a complex process with significant implications for process efficiency and cost. A structured workflow is essential for ensuring a successful outcome. Without a systematic approach, critical parameters can be overlooked, leading to suboptimal compressor selection, increased operational costs, and potential safety hazards.

A well-defined workflow provides several key benefits:

• Comprehensive Evaluation: A structured approach ensures that all relevant factors, including gas properties, operating conditions, site constraints, and economic considerations, are systematically evaluated.
• Reduced Errors: By breaking down the selection process into discrete steps, a structured workflow minimizes the potential for errors in data collection, calculations, and decision-making.
• Optimized Performance: A systematic evaluation allows for a more accurate prediction of compressor performance, enabling the selection of a compressor that is optimally sized and configured for the specific application.
• Cost Control: A structured workflow helps to identify and evaluate all relevant cost factors, allowing for a more informed decision that balances performance requirements with economic constraints.
• Improved Communication: A well-defined workflow provides a clear framework for communication and collaboration between process engineers, equipment vendors, and other stakeholders.
• Enhanced Safety: By systematically evaluating potential safety hazards and implementing appropriate safeguards, a structured workflow helps to ensure the safe and reliable operation of the compressor system.

By following a structured workflow that includes defining the application, gathering detailed data, performing calculations, evaluating compressor types, and considering economic factors, process engineers can make informed decisions and select the compressor that best meets the needs of their specific application. For ongoing reliability, consult our comprehensive compressor troubleshooting and maintenance guide. Remember, shortcuts often lead to problems down the line.

2. Main Concepts

What are the fundamental concepts for effective compressor selection?

2.1. Defining Compressor Applications

What elements should be included in a complete compressor application definition?

The initial and arguably most crucial step in compressor selection is a precise and comprehensive definition of the application. This involves clearly articulating the purpose of the compressor within the overall process and meticulously documenting all relevant operating parameters. A complete application definition should include the following elements:

• Gas Composition: For gas mixtures, a detailed compositional analysis, specifying each component and its respective mole or weight fraction, is required. Variations in gas composition over time should also be documented.
• Inlet Conditions: Define the suction pressure (Ps) and suction temperature (Ts) at the compressor inlet, expressed in absolute units (psia or bara, °R or °K). Specify the expected range of variation for both pressure and temperature.
• Discharge Conditions: Specify the required discharge pressure (Pd) and discharge temperature (Td) at the compressor outlet, expressed in absolute units and including acceptable tolerances. Any limitations on the maximum allowable discharge temperature should be clearly stated.
• Capacity Requirements: Determine the required flow rate, considering both average and peak demands. Specify the flow rate units (e.g., SCFM, ICFM, lb/hr) and the reference conditions.
• Process Requirements: Identify any specific process constraints, such as the need for oil-free compression, discharge temperature limitations, pressure pulsation limits, or specific materials of construction.
• Site Conditions: Document the environmental conditions at the installation site, including altitude, ambient temperature range, cooling water availability, and any hazardous area classifications.
• Duty Cycle: Define the expected operating schedule of the compressor, including the number of hours per day, days per week, and any seasonal variations.
• Scope of Supply: Clearly define the scope of supply, including the compressor package, driver, control system, and any auxiliary equipment.

A clear and concise written statement summarizing the application is highly recommended. For example: "This compressor will compress a mixture of methane and ethane from a low-pressure storage tank to a high-pressure pipeline. The compressor must operate continuously, with a flow rate ranging from 1000 to 1200 SCFM and a discharge pressure of 1200 psig. Oil-free compression is required to prevent contamination of the gas stream." This kind of clarity will save you headaches later.

2.2. Key Parameters: Gas Properties (MW, n Value, Critical Values)

Why are gas properties important for compressor selection?

Accurate knowledge of the gas properties is important for proper compressor selection and performance prediction. These properties dictate the thermodynamic behavior of the gas during compression and directly influence the compressor's power requirements, discharge temperature, and overall efficiency. The key gas parameters to consider are:

• Molecular Weight (MW): The molecular weight of the gas or gas mixture. For gas mixtures, the molecular weight is calculated as the weighted average of the molecular weights of the individual components, based on their mole fractions: MWmix = Σ (xi * MWi).
• Specific Heat Ratio (n-value): Also known as the isentropic exponent or adiabatic index (k), this value represents the ratio of specific heat at constant pressure (Cp) to specific heat at constant volume (Cv). It is critical for calculating the adiabatic or polytropic head, discharge temperature, and power requirements.
• Critical Pressure (Pc) and Critical Temperature (Tc): These thermodynamic properties are essential for determining the compressibility factor (Z). They are used to calculate the reduced pressure (Pr = P/Pc) and reduced temperature (Tr = T/Tc).
• Compressibility Factor (Z): A dimensionless factor that corrects for the non-ideal behavior of real gases. For preliminary estimations, assuming Z = 1.0 may be acceptable. However, for accurate performance predictions, especially at high pressures, the compressibility factor must be determined using appropriate equations of state or generalized compressibility charts.

These gas properties can be obtained from published thermodynamic tables, online databases, or process simulation software. For gas mixtures, appropriate mixing rules must be used to calculate the average properties. Don't rely on rules of thumb when dealing with complex gas mixtures; accurate data is essential.

2.3. Pressure Considerations: Absolute vs. Gauge Pressure

What is the difference between gauge and absolute pressure, and why is it important?

Pressure is a fundamental parameter in compressor selection, and it is crucial to differentiate between gauge pressure and absolute pressure.

• Gauge Pressure (psig/barg): Pressure measured relative to the surrounding atmospheric pressure.
• Absolute Pressure (psia/bara): Pressure measured relative to a perfect vacuum. This is the total pressure exerted and is essential for all thermodynamic calculations.

The relationship between these two pressure measurements is defined by the following equations:

• psia = psig + Pamb
• bara = barg + Pamb

Where Pamb represents the local atmospheric or barometric pressure. All compressor calculations must be performed using absolute pressures. Atmospheric pressure varies with altitude, so the location of the compressor installation significantly impacts this conversion.

Table 3.1: Atmospheric Pressure vs. Altitude

Section 3.1 provides a table of atmospheric pressure versus altitude to facilitate accurate conversions. Remember to use the correct atmospheric pressure for your location.

2.4. Temperature Considerations: Absolute vs. Gauge Temperature

Why is it important to use absolute temperature in compressor calculations?

Similar to pressure, temperature must be expressed in absolute units for all compressor calculations, as thermodynamic relationships are based on absolute temperature scales.

• Gauge Temperature (°F/°C): Temperature measured relative to an arbitrary zero point.
• Absolute Temperature (°R/°K): Temperature measured relative to absolute zero.

The conversion formulas are:

• °R = °F + 460
• °K = °C + 273.15

Ensure that all temperature values used in calculations are converted to absolute units (°R or °K) and that units are consistent throughout the process. Consistency is key to avoiding errors.

2.5. Capacity Specifications: ICFM, SCFM, and Conversion

What is ICFM, and how do you convert between ICFM and SCFM?

Compressor capacity represents the volumetric flow rate of gas, but it is often specified using different units and reference conditions. For compressor selection, Inlet Cubic Feet per Minute (ICFM) is the most important parameter, as it represents the actual volume of gas the compressor ingests per minute at its inlet conditions (Ps, Ts). All other capacity specifications must be converted to ICFM to ensure accurate compressor sizing.

Common capacity specifications include:

• ICFM (Inlet Cubic Feet per Minute): The actual volumetric flow rate at the compressor inlet conditions.
• ACFM (Actual Cubic Feet per Minute): The actual volumetric flow rate at any specified set of conditions. If these conditions match the compressor inlet, ACFM equals ICFM.
• SCFM (Standard Cubic Feet per Minute): The volumetric flow rate corrected to "standard" reference conditions (e.g., 14.7 psia and 60°F).
• MSCFD (Thousand Standard Cubic Feet per Day): Similar to SCFM, but expressed on a daily basis.
• Mass Flow Rate (e.g., lb/hr, kg/hr): The mass of gas flowing per unit time.

The conversion formula from SCFM to ICFM is:

• ICFM = SCFM * (Pstd / Ps) * (Ts / Tstd) * (Zs / Zstd)

Where:

• Pstd and Tstd are the standard pressure and temperature.
• Ps and Ts are the compressor suction pressure and temperature (absolute units).
• Zs and Zstd are the compressibility factors at suction and standard conditions, respectively.

For preliminary calculations, the ratio Zs/Zstd can be assumed to be 1. Be aware of the specific standard conditions used for SCFM, as different standards exist. Always double-check the standard conditions used in any given specification.

3. Calculation Methods and Formulas

What calculation methods and formulas are essential for compressor selection?

3.1. Converting Gauge Pressure to Absolute Pressure

How do you convert gauge pressure to absolute pressure?

As discussed in Section 2.3, compressor calculations require absolute pressure values. The conversion from gauge pressure to absolute pressure is performed using the following formulas:

• PSIA = PSIG + Pamb
• bara = barg + Pamb

Where Pamb is the local barometric pressure. Use the data in Table 3.1 to determine Pamb based on site altitude. For critical applications, direct barometric pressure measurement is recommended.

3.2. Converting Temperature Scales

How do you convert between Fahrenheit and Rankine, and Celsius and Kelvin?

As discussed in Section 2.4, compressor calculations require absolute temperature values. The conversion from gauge temperature to absolute temperature is performed using the following formulas:

• °R = °F + 460
• °K = °C + 273.15 (Use 273 for most engineering calculations)

3.3. Calculating Inlet Cubic Feet per Minute (ICFM) from SCFM

How do you calculate ICFM from SCFM?

As established in Section 2.5, converting all capacity specifications to ICFM is crucial for accurate compressor selection. The conversion formula is:

\[ \text{ICFM} = \text{SCFM} \times \frac{P_{std}}{P_{act}} \times \frac{T_{act}}{T_{std}} \times \frac{Z_{act}}{Z_{std}} \]

Where:

• Pstd = Standard pressure (absolute). Common values are 14.696 psia or 14.7 psia.
• Ps = Compressor suction pressure (absolute).
• Ts = Compressor suction temperature (absolute) in °R.
• Tstd = Standard temperature (absolute). Common values are 519.67 °R or 520 °R (60°F).
• Zs = Compressibility factor at suction conditions.
• Zstd = Compressibility factor at standard conditions.

3.4. Calculating Polytropic or Adiabatic Head

How do you calculate polytropic and adiabatic head?

The polytropic or adiabatic head represents the amount of energy imparted to the gas by the compressor. The polytropic head calculation is generally preferred as it provides a more realistic representation of the actual compression process.

1. Polytropic Head (\( H_p \)):

\[ H_p = \frac{Z_1 \cdot R \cdot T_1}{\frac{n-1}{n}} \left[ \left( \frac{P_2}{P_1} \right)^{\frac{n-1}{n}} - 1 \right] \]

2. Adiabatic Head (\( H_s \)):

\[ H_s = \frac{Z_1 \cdot R \cdot T_1}{\frac{k-1}{k}} \left[ \left( \frac{P_2}{P_1} \right)^{\frac{k-1}{k}} - 1 \right] \]

3.5. Calculating Specific Speed (Ns)

How do you calculate specific speed, and what does it indicate about compressor type?

Specific speed (\( N_s \)) is a dimensionless parameter used to classify compressor impellers and helps in selecting the appropriate compressor type.

\[ N_s = \frac{N \cdot \sqrt{Q}}{H^{3/4}} \]

Where:

• N = Compressor speed (RPM)
• Q = Inlet flow rate (ICFM)
• H = Adiabatic head (ft-lbf/lbm)

3.6. Estimating Number of Impellers/Stages

How do you estimate the number of stages required for a compressor?

The number of impellers or stages required for a compressor is directly related to the total head required and the achievable head per stage.

\[ \text{Number of Stages} = \frac{\text{Total Head}}{\text{Head per Stage}} \]

3.7. Calculating Gas Horsepower

How do you calculate the gas horsepower required for a compressor?

Calculating the gas horsepower is a crucial step in sizing the compressor driver (e.g., electric motor) and estimating energy consumption.

\[ \text{Gas HP} = \frac{\dot{m} \cdot H}{33,000 \cdot \eta_{\text{overall}}} \]

4. Interactive Compressor Sizing Calculator & Worked Examples

Use the fully interactive calculator below to perform rapid thermodynamic sizing, mass flow calculations, and power estimates for air and gas compressors.
