1. Polytropic compression : definition

The compression of gases in compressors is often idealized as isentropic, which means that there are no friction, no leakage of gas in between high and low pressure side, and that the compressor is perfectly insulated.

In reality this is of course not achieved which means that the discharge temperature is higher than for an isentropic compression at same compression ratio. As a consequence, at the same discharge temperature, the compression power transmitted to the fluid will be lower, which means that an actual compressor will require more power than the same isentropic compressor to reach the same pressure.

2. Polytropic compression power calculation : step by step calculation guide

2.1 STEP 1 : define the compressor polytropic efficiency

The polytropic efficiency is given by the manufacturer of the compressor. If you have an existing compressor or consider a new one, you can find such references on manufacturers datasheets.

If this is not available, you can approximate the polytropic efficiency of centrifugal compressors as the polytropic efficiency is linked to the flow at inlet of the compressor. The polytropic efficiency calculation formula is the following [1] :

Ep = 0.61+0.03*log(0.5885*Qv)

With :

Ep = polytropic efficiency (-)
Qv = gas flow at inlet conditions of compressor (m3/h)

(The coefficient 0.5885 is to convert m3/h to cfm)

2.2 STEP 2 : define the gas isentropic coefficient

The gas isentropic coefficient is the specific heat ratio of the gas, which means that the heat capacity at constant pressure is divided by the heat capacity at constant volume.

k = Cp/Cv

You can access the specific heat ratio of different gas on My Engineering Tools.

2.3 STEP 3 : define the polytropic coefficient of the gas

The specific heat ratio of the gas is used in the calculation of the power of an ideal compressor running in isentropic or adiabatic compression. However this ideal ratio is changing in a true centrifugal compressor for which the outlet temperature differs from the adiabatic one. The isentropic coefficient k must then be replaced by the polytropic coefficient n.

The relationship in between k and n is the following [1] :

(n-1)/n = (k-1)/k*1/Ep

n=1/(1-(k-1)*1/Ep)

With :

n = polytropic coefficient
k = isentropic coefficient
Ep = polytropic efficiency

2.4 STEP 4 : calculate the polytropic compression power of the centrifugal compressor

The following formula can be used to calculate the polytropic compression power for a centrifugal compressor :

Ppoly = (n*Z*R*T1)/(n-1)*[(P2/P1)(n-1)/n-1]*Qm

Polytropic compression power calculation equationPolytropic compression power calculation equation

Equation 1 : polytropic compression power calculation formula [Perry]

With :

Ppoly= Polytropic Compression Power (kW)
Z = gas compressibility factor (can be defined on an Amagat diagram by calculating the reduced pressure and reduced temperature of the gas)
R = 8.314/M with M the gas molecular weight in g/mol
T1 = Temperature inlet compressor (K)
P1 = Pressure inlet compressor (kPa)
P2 = Pressure outlet compressor (kPa)
Qm=Compressor throughput (kg/s)
n=Gas polytropic coefficient

2.5 STEP 5 : calculate the actual power required

It is finally required to divide the compression power calculated at STEP 4 by the polytropic efficiency to calculate what will be the actual power consumed, considering the losses happening in the compressor during the compression process.

Pactual_centrifugal = Ppoly / Ep

3. Usual values for calculation

  • For air k=1.4
  • Typical polytropic efficiency of centrifugal compressor : 0.75

For references of industrial compressors and discussions with experts, the reader can refer to the following company (no link with MyEngineeringTools.com) :

www.continental-industrie.com

4. What about reciprocating compressors ?

Reciprocating compressors are usually cooled, which means that the discharge temperature is close to the isentropic discharge temperature. For these compressors, the isentropic power calculation is therefore relevant and can be used to calculate the reciprocating compressor power. It is divided by the global efficiency of the reciprocating compressor, which can be assumed ~0.75 in 1st approximation if the constructor value is not known.

Pactual_reciprocating = Pisentropic / ηglobal_reciprocating

With

Pactual_reciprocating = actual power required for a reciprocating compressor (kW)
Pisentropic = isentropic power required for the reciprocating compressor in the studied conditions (kW)
ηglobal_reciprocating = global efficiency of the reciprocating compressor (-)


5. Example and Free Excel calculation tool

A compressor has to compress 2000 m3/h of air (air volumetric flow at inlet conditions) at 6 bar g, from air at atmospheric pressure and 20°c. The Engineer wishes to calculate the actual compression power to foresee for a centrifugal compressor.

Preliminary step : calculate the mass flowrate of gas

The compressor is to deliver 2000 m3/h of air sucked at atmospheric conditions and 20c. At this pressure gas ideality is mostly verified thus the specific gravity is PM/RT/1000 = 1.205 kg/m3. This gives a mass flowrate of 2000*1.205 = 2411 kg/h=0.6697 kg/s

5.1 STEP 1 : define the compressor polytropic efficiency

The following formula can be used to estimate a centrifugal compressor polytropic efficiency when used under those conditions :

Ep = 0.61+0.03*log(0.5885*Qv) = 0.61+0.03*log(0.5885*2000) = 0.702

With :

Ep = polytropic efficiency (-)
Qv = gas flow at inlet conditions of compressor (m3/h)

2.2 STEP 2 : define the gas isentropic coefficient

For air, the isentropic coefficient k is well defined and equaled to 1.4

2.3 STEP 3 : define the polytropic coefficient of the gas

The relationship in between k and n is the following [1] :

(n-1)/n = (k-1)/k*1/Ep

n=1/(1-(k-1)*1/Ep)=1/(1-(1.4-1)*1/0.702)=1.686

With :

n = polytropic coefficient
k = isentropic coefficient
Ep = polytropic efficiency

2.4 STEP 4 : calculate the polytropic compression power of the centrifugal compressor

The following equation is used to calculate the polytropic compression power required for the centrifugal compressor to bring 2000 m3/h or air at 20c to 6 bar g. At low pressure, Z is assumed to be equaled to 1 here.

Ppoly = (n*Z*R*T1)/(n-1)*[(P2/P1)(n-1)/n-1]*Qm

Ppoly = (1.686*1*8.314/29*293.15)/(1.686-1)*[(700000/101325)(1.686-1)/1.686-1]*0.6697

Ppoly =165.7 kW

2.5 STEP 5 : calculate the actual power required

Pactual_centrifugal = Ppoly / Ep = 165.7*0.702 = 236 kW

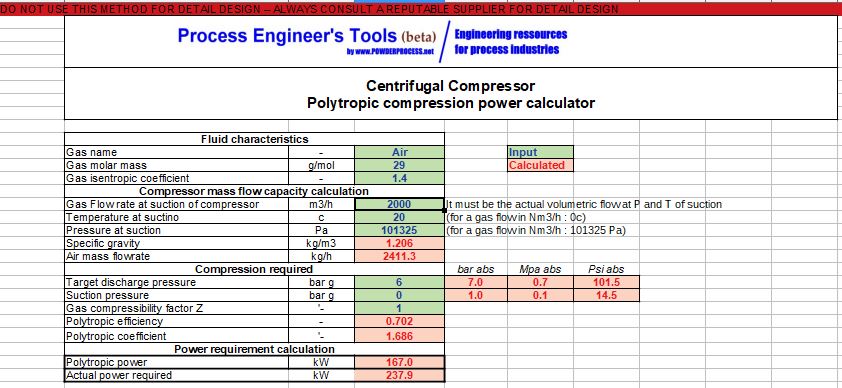

You can access a free Excel calculation tool to make the compressor power calculation explained above : Compressor Power Calculator

Polytropic compression power Excel calculator


Source
[1] Boyun Guo Ph.D. et al, in Petroleum Production Engineering, 2007

[Perry] Perry's Chemical Engineer's Handbook, Section 10 Transport and storage of fluids, page 10-45, McGraw-Hill, 2008
