1. What is the minimum flow for a pump ?

Due to the rotation of the impeller, mechanical energy is transferred to the fluid in a centrifugal pump. A significant fraction of this energy is dissipated as frictional heat due to hydraulic inefficiencies, disk friction, and internal fluid recirculation within the casing.

If the net process flow through the pump is too low, the fluid residence time inside the pump volute increases, and the liquid temperature rises progressively. Eventually, the fluid temperature can reach the saturation temperature corresponding to the local static pressure inside the pump (most critically at the impeller suction eye). This causes immediate flashing, leading to severe cavitation, vapor locking, seal face vaporization, and catastrophic pump damage. It is therefore mandatory to guarantee a safe minimal continuous flow through any operating centrifugal pump, usually provided by an engineered bypass or recirculation line back to the suction vessel.

2. How to calculate a centrifugal pump minimal flow ?

The theoretical minimum continuous thermal flow (MCTF) required to limit liquid temperature rise to a safe permissible margin can be derived from first thermodynamic principles:

\[ Q_{\text{min}} = \frac{P_{\text{shutoff}}}{\rho \cdot C_p \cdot \Delta T_{\text{allowable}}} \]

In standard US field engineering units, assuming that all shutoff brake horsepower is converted to heat and allowing a standard permissible liquid temperature rise of \(\Delta T = 15^\circ\text{F}\):

\[ q = \frac{P}{2.95 \times C_p \times \text{sg}} \]

With:

\(q\) = Minimum thermal flow rate through the pump in gpm
\(P\) = Pump shutoff / operating power in bhp (brake horsepower)
\(C_p\) = Liquid specific heat capacity in Btu/(lb·°F) (e.g., 1.0 for ambient water)
\(\text{sg}\) = Liquid specific gravity dimensionless (relative to water at 60°F)

Note on Thermal vs Mechanical Minimum Flow: The formula above calculates the Minimum Continuous Thermal Flow (MCTF) to prevent vapor flashing. However, pumps also have a Minimum Continuous Stable Flow (MCSF) dictated by mechanical forces (internal suction/discharge recirculation, extreme radial bearing thrust, and impeller vibration). The actual operating minimum flow limit must always be the higher of the two values, certified by the pump manufacturer.

💡 Plant Engineering Rules of Thumb & Recirculation Design

MCTF vs. MCSF: Thermal minimum flow (\(Q_{\text{thermal}}\)) is typically 5% to 15% of Best Efficiency Point (BEP) flow. In contrast, mechanical minimum stable flow (\(Q_{\text{stable}}\)) ranges from 25% to 40% of BEP flow for low-to-medium specific speed pumps, and up to 60% for high-energy pumps.
Permissible Temperature Rise: For cold water and stable, non-volatile liquids, a maximum allowable \(\Delta T\) of 8°C to 10°C (15°F) is standard. For volatile hydrocarbons, boiler feedwater, or fluids close to their bubble point, limit \(\Delta T\) strictly to 1.5°C to 3°C (3°F to 5°F) to prevent flashing in mechanical seal chambers.
Recirculation Piping Destination: Minimum flow bypass lines must never be piped directly back into the pump suction nozzle. They must return into the upstream suction vessel below the minimum liquid level to allow adequate thermal heat dissipation.
Recirculation Hardware: Small pumps (<15 kW) frequently use continuous bypass loops with multi-hole restriction orifices (RO). Larger or variable process services use Automatic Recirculation Valves (ARV) or modulating control valves tied to magnetic flowmeters.

3. Pump minimum flow free calculator

3.1 Excel calculator

You can download our free engineering spreadsheet here: Download Pump Minimum Flow Calculator.xlsx

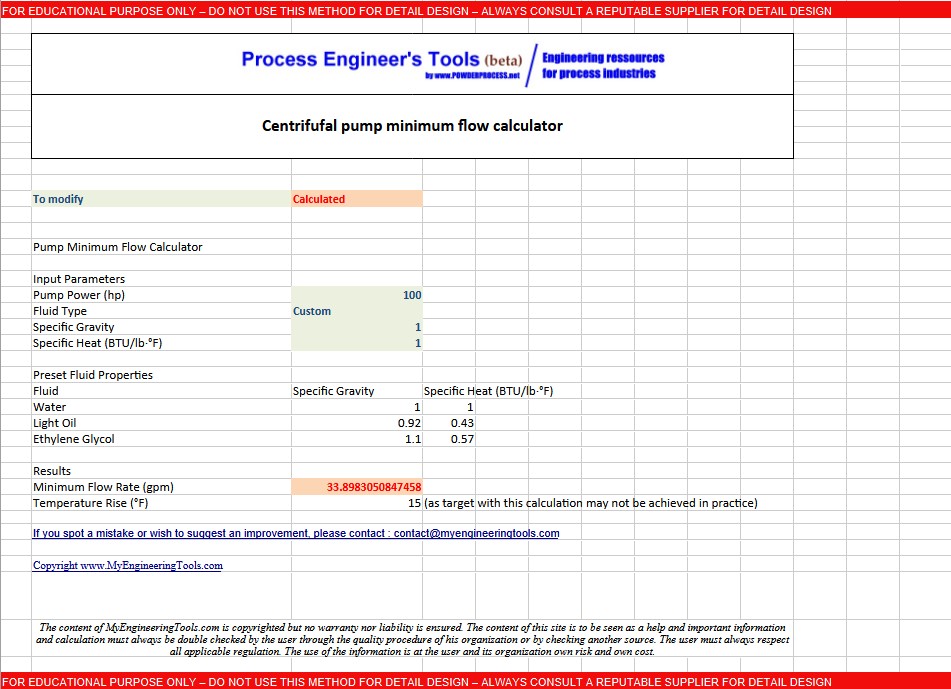

Centrifugal pump minimal flow calculator spreadsheet preview

3.2 Online Interactive Calculator

⚠️ ENGINEERING NOTICE & EDUCATIONAL DISCLAIMER: This interactive calculator is provided exclusively for preliminary estimation and educational purposes. It calculates the theoretical minimum continuous thermal flow (MCTF). It does not account for internal mechanical recirculation or bearing loads. Always consult certified pump manufacturer performance curves before equipment specification or procurement.

Unit System: US Customary (hp, gpm, °F) SI Metric (kW, m³/h, °C)

Pump Power at Shutoff (hp):

Preset Fluid Selection:

Specific Gravity (sg):

Specific Heat Capacity Cp (Btu/lb·°F):

Target Allowable Temp Rise ΔT (°F):

Frequently Asked Questions (FAQ)

1. What is the minimum flow for a centrifugal pump?

The minimum flow for a centrifugal pump is the lowest flow rate required to prevent critical issues such as overheating, internal cavitation, shaft deflection, excessive vibration, and rapid mechanical seal failure.

2. Why is liquid recirculation mandatory in pump circuits?

Recirculation ensures a continuous path for fluid movement during periods of low or blocked downstream process demand. This flow carries away the frictional heat generated by the rotating impeller, preventing localized boiling and flashing at the suction eye.

3. How is the minimum flow calculated for a centrifugal pump?

Thermodynamically, minimum flow is calculated via heat dissipation: \(q = P / (2.95 \times C_p \times \text{sg})\) in US units, assuming a 15°F liquid temperature rise. In SI metric units, it is given by \(Q = (P \times 3600) / (\rho \cdot C_p \cdot \Delta T)\).

4. What is the difference between MCTF and MCSF?

MCTF (Minimum Continuous Thermal Flow) prevents liquid boiling inside the pump casing. MCSF (Minimum Continuous Stable Flow) prevents mechanical damage from internal hydraulic recirculation, cavitation surges, and high radial bearing loads. MCSF is almost always higher than MCTF.

5. Where should the pump minimum flow line discharge?

The minimum flow recirculation line must always discharge back into the suction reservoir, deaerator, or supply tank below the minimum liquid level. Returning minimum flow directly into the pump suction line causes cumulative heat buildup and vapor locking.
