Heat transfer is very often not only a matter of conduction, or convection, but involves both phenomena. The heat transfer can then be characterized by a heat transfer coefficient that is taking into consideration conduction and convection. Such a heat transfer coefficient is commonly called overall heat transfer coefficient.

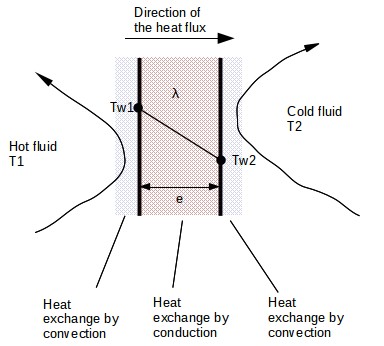

**Figure 1 : Simultaneous heat
transfer by convection and conduction
**

For example on the figure 1, heat transfer by convection is happening on both sides of the wall, with the heat being transferred by convection on one side of the wall, it is conveyed by conduction through the wall, then transferred by convection again to the other fluid. The overall process can be translated through an overall heat transfer coefficient often noted U.

Important notice : the overall heat transfer coefficient allows to calculate the heat flux due to conduction and convection, however, in some applications, radiations must also be taken into account. This should not be forgotten and the heat flux due to radiation should be added to the one calculated for conduction and convection in order to obtain the total heat transmitted.

The overall heat transfer coefficient for a wall, monomaterial, exposed to convection on both sides can be expressed the following way :

With :

U = overall heat transfer coefficient in
W/m2.°c

R = overall heat transfer resistance in m2.°c/W

h_{1} = convection heat coefficient on side 1 in W/m2.°c

h_{2} = convection heat coefficient on side 2 in W/m2.°c

e = wall thickness in m

λ = material thermal conductivity in W/m.°c

**In case the wall is made of several
layers of materials with different thermal conductivities, please refer to this page detail the
heat transfer coefficient for conduction.**

The heat flux, which is the heat transferred expressed as a function of the heat exchange area, can be calculated the following way :

**Φ = Q/A = U.ΔT**

With :

Φ = heat flux in W/m2

Q = heat transferred in W

U = overall heat transfer coefficient in W/m2.°c

A = heat transfer area in m2

ΔT = temperature difference of the fluids on each side of the wall
in °c

The expressions can then be summarized as :

**Φ = Q/A = U.****(T _{1}-T_{2})
= **(T

With :

T_{1} = temperature of the
hot fluid on one side of the wall in °c

T_{2} = temperature of the cold fluid on the other side of
the wall in °c

It may happen that the wall surface is actually not clean and a deposit of some sort is present. This deposit, called fouling, is limiting the heat transfer by adding one resistance to the overall heat transfer. The fouling resistance must be estimated and references are often found in the literature. The overall heat transfer coefficient then becomes :

**1/U = 1/h _{1}+e/λ+1/h_{2}+R**

With :

R_{F} = fouling resistance in m2.°c/W

The same principle is applied for a cylindrical wall, and especially for a pipe, as explained above for a plane wall, to the exception that the conduction resistance is adapted to the geometry of a pipe.

For a pipe, the overall heat transfer coefficient is expressed the following way :

**1/U = R = 1/h _{ic}+**

With :

U = overall heat transfer coefficient in
W/m2.°c

R = overall heat transfer resistance in m2.°c/W

h_{ic} = convection heat coefficient on the inside of the
pipe in W/m2.°c - warning, it is corrected to be referred to the
external surface of the pipe h_{ic} = hi.D_{i}/D_{o}

h_{o} = convection heat coefficient on the outside in
W/m2.°c

D_{o} = outside pipe diameter in m

D_{i} = inside pipe diameter in m

λ = material thermal conductivity in W/m.°c

ln = log neperian

The heat flux can then be calculated by :

**Φ = Q/A = U.****(T _{1}-T_{2})
= **(T

With :

T_{1} = temperature of the
fluid inside the pipe in °c

T_{2} = temperature of the fluid on the outside of the pipe
in °c

With :

R_{F} = fouling resistance in m2.°c/W **= R _{Fi}.D_{o}/D_{i}
+ R_{Fo}**

R

R

The expressions above are given for a monomaterial pipe, but can also be used with multimaterial, insulated pipe by referring to the conduction equations on this page.
