Gas expanders available energy calculation
Which energy can we recover by expanding a gas stream ?
Follow us on Twitter
Question, remark ? Contact us at contact@myengineeringtools.com
| Section summary |
|---|
| 1. Energy available calculation |
| 2. Outlet temperature calculation |
| 3. Assumptions and approximations |
| 4. Gas expander energy available Excel calculator |
QUICK KNOWLEDGE ACCESS
Energy is what powers our modern society, and of course process industries which are at the source of all technological progress. Energy is however scarcer and thus more expensive than some decades ago. It becomes mandatory not to waste energy but use it at maximum wherever it is available. It is for example the case when a compressed gas is produced in a factory. If there is no need for the gas to stay compressed it can be expanded.
However the expansion can be just done with a valve, in which case all the energy will be lost, or it can be done with a gas expander (turbo-expander) which will allow to recover some of the energy. If a relatively high and regular flow of compressed gas is available it may then be interesting to install a gas expander that will then power another equipment (a compressor, an alternator...).
This page explains how to estimate the energy available that can be recovered by a gas expander.
Top 5 Most Popular
1. Compressor Power Calculation
2. Pump Power Calculation
3. Pipe Pressure Drop Calculation
4. Fluid Velocity in pipes
5. Churchill Correlation (friction factor)
1. Energy available calculation
The energy available through expansion of the gas can be estimated thanks to the following formula :
With :
\(\Delta H\) = Actual available energy (Btu/lb)
\(Cp\) = heat capacity at constant pressure (Btu/lb·°F)
\(T_1\) = inlet temperature (°R)
\(P_1\) = inlet pressure (psia)
\(P_2\) = outlet pressure (psia)
\(K\) = ratio of heat capacities \(Cp/Cv\)
2. Outlet temperature calculation
The temperature at the outlet of the gas expander can be calculated with the following equation :
With :
\(\Delta H\) = Actual available energy (Btu/lb)
\(Cp\) = heat capacity at constant pressure (Btu/lb·°F)
\(T_1\) = inlet temperature (°R)
\(T_2\) = outlet temperature (°R)
\(P_1\) = inlet pressure (psia)
\(P_2\) = outlet pressure (psia)
\(K\) = ratio of heat capacities \(Cp/Cv\)
3. Assumptions and approximations
The formulas above give approximate values that can be used for example to determine if using a gas expander makes sense, but cannot be used for detailed design. For instance, the formula for energy available assumes an isentropic efficiency of 50%, which may differ from a real gas expander. The calculation of outlet temperature is rough, and a more detailed rigorous flash calculation should be performed especially to make sure that the dew point of the gas will not be reached (which could lead to mechanical damage if liquid droplets form).
🌱 Industrial Best Practices & Engineering Rules of Thumb
- Expansion Ratio Limits: For single-stage radial turbo-expanders, pressure ratios up to 4:1 to 6:1 are common. Higher ratios require multi-staging or axial designs.
- Isentropic Efficiency: Preliminary screening assumes 50% per classical heuristics (Hall, 2018), while modern commercial turbo-expanders achieve 75% to 85% adiabatic efficiency.
- Cryogenic Dew-Point Check: Always verify $T_2$ against hydrocarbon dew points and hydrate formation curves. Severe low temperatures can cause moisture condensation or carbon dioxide solidification.
- Tip Speed Limit: Rotor wheel peripheral speeds should be restricted to $\le 400\text{ m/s}$ to prevent severe centrifugal stress and sonic shock losses.
4. Interactive Online Calculator & Excel Spreadsheet
Turbo-Expander Available Energy Calculator
Calculation Results (Excel Ground Truth Match)

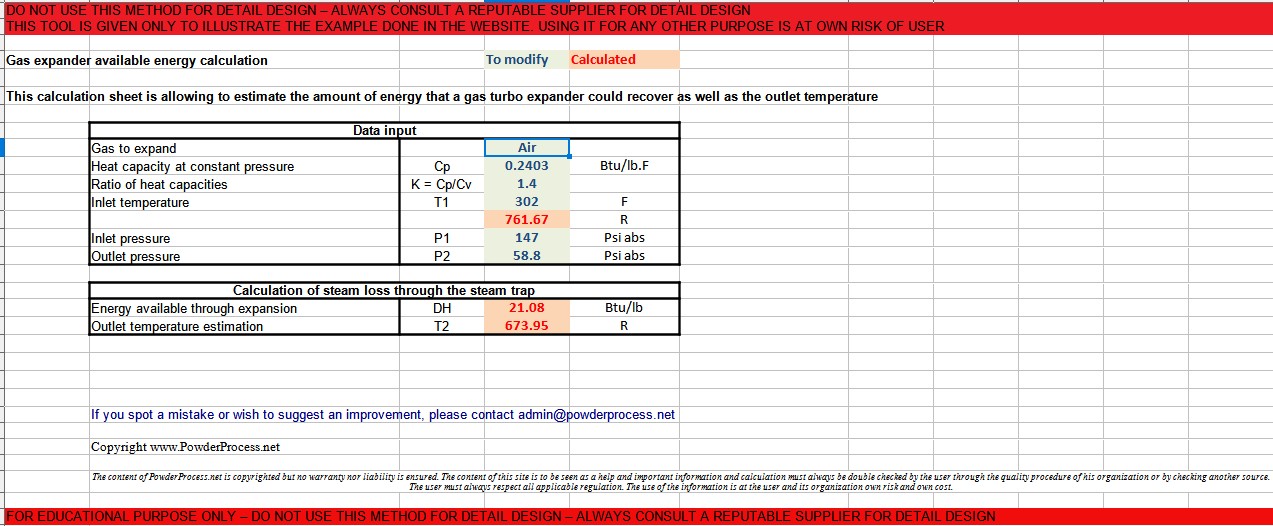

You can also access the free companion Excel calculator to estimate available energy through gas expansion: Gas expander available energy Calculator (click here)
Warning : this calculator is provided to illustrate the concepts mentioned in this webpage, it is not intended for detail design. It is not a commercial product, no guarantee is given on the results. Please consult a reputable designer for all detail design you may need.
DETAILED KNOWLEDGE
Recovering Energy with Gas Turbo‑Expanders – Design, Calculation & ROI
1. Why Recover Energy from Compressed Gas?
Energy costs have risen sharply, making waste‑heat recovery a competitive advantage. When a process produces high‑pressure gas that later needs to be depressurised, a simple throttling valve discards the enthalpy. A turbo‑expander can convert a large portion of that enthalpy into shaft work, driving a compressor, generator, or pump.
2. Quick‑Calc: Estimate Recoverable Power
Download the free Excel calculator
Enter inlet/outlet pressures, temperature, flow rate, and assumed efficiency (default 75%). The sheet returns:
- Isentropic work (kW)
- Real work (kW)
- Outlet temperature (°C)
- Estimated payback period
3. Turbo‑Expander Fundamentals
- Types: axial, radial, mixed‑flow – each suited to different pressure ratios (1.05:1 – 15:1).
- Typical efficiencies: 70–85% for modern designs.
- Key parameters: specific speed ($N_s$), isentropic efficiency ($\eta$), expansion ratio ($PR$).

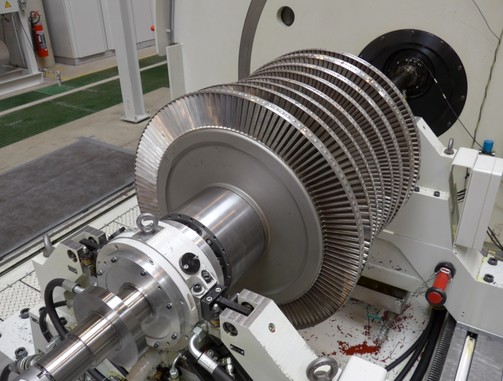

Axial turbo expander

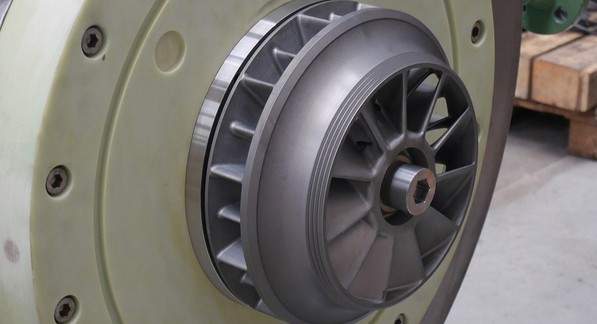

Radial turbo expander
4. Thermodynamic Modelling
4.1 Isentropic Work
The ideal (isentropic) work per unit mass of gas is:
\[ W_{\text{iso}} = \frac{k}{k-1}\,R\,T_1\Bigl[1-\Bigl(\frac{P_2}{P_1}\Bigr)^{\frac{k-1}{k}}\Bigr] \] where:\(k = C_p/C_v\) (≈ 1.4 for diatomic gases), \(R\) – specific gas constant (J kg⁻¹ K⁻¹), \(T_1\) – inlet absolute temperature (K), \(P_1, P_2\) – inlet and outlet absolute pressures.
4.2 Real (Recovered) Work
Actual work accounts for mechanical and aerodynamic losses:
\[ W_{\text{real}} = \eta_{\text{exp}}\,W_{\text{iso}} \] A first‑order assumption of \(\eta_{\text{exp}} = 0.75\) is common; later refinement uses manufacturer efficiency maps.4.3 Outlet Temperature
From the energy balance:
\[ T_2 = T_1 - \frac{W_{\text{real}}}{C_p} \] Check \(T_2\) against the gas dew‑point to avoid condensation.Sample Calculation (Nitrogen)
| Parameter | Value |
|---|---|
| k | 1.40 |
| Cp | 0.296 kJ kg⁻¹ K⁻¹ |
| Inlet pressure \(P_1\) | 10 bar |
| Outlet pressure \(P_2\) | 1 bar |
| Inlet temperature \(T_1\) | 300 K |
| Mass flow | 100 kg h⁻¹ |
| Isentropic work \(W_{\text{iso}}\) | 31 kW |
| Assumed η | 0.78 |
| Real work \(W_{\text{real}}\) | 24 kW |
| Ideal outlet temperature | 215 K |
| Real outlet temperature | 221 K |
5. Off‑Design Performance & Speed Correction
Real plants rarely operate exactly at the design point. Use the \(U_2/C_o\) relationship to adjust efficiency for off‑design conditions:
- Guess shaft speed \(N\) (rpm).
- Compute specific speed \(N_s = N\sqrt{Q}/(P_{\text{ratio}}^{0.5})\).
- Read η from the manufacturer’s efficiency map for that \(N_s\).
- Iterate until expander power matches the load (compressor or generator).
6. Mechanical & Materials Snapshot
- Rotor tip speed: ≤ 400 m/s to limit aerodynamic losses.
- Materials: Austenitic stainless steel for moderate temperatures; Inconel or Hastelloy for cryogenic service.
- Bearings: Magnetic or oil‑free designs reduce contamination risk.
7. Economic Evaluation
| Item | Typical Value |
|---|---|
| Capital cost | $150–$250 per kW of shaft power |
| Electricity price (US) | $0.08 /kWh |
| Annual operating hours | 8,000 h |
| Annual energy saved | \(W_{\text{real}}\times 8,000\) kWh |
| Payback (years) | \(\displaystyle\frac{\text{CapEx}}{W_{\text{real}}\times 8,000\times 0.08}\) |
Using the sample 24 kW expander gives ≈ 1.5 GWh yr⁻¹ → ≈ $120k yr⁻¹ → payback ≈ 2–3 years.
8. Frequently Asked Questions (FAQ)
- How does a turbo‑expander differ from a throttling valve?
- A throttling valve recovers zero work; a turbo‑expander can capture 60-80% of the enthalpy drop.
- What is the minimum pressure ratio to justify an expander?
- Generally > 1.2:1 for small units; larger systems become economical above 2:1.
- How to avoid condensation in cryogenic expanders?
- Calculate outlet temperature, compare with dew‑point curves, and optionally add a reheater or moisture trap.
- Can the same expander drive both a compressor and a generator?
- Yes – the “expander‑compressor” (API 617) configuration couples the shaft to a compressor; a gearbox can feed a generator.
- Where can I find vendor efficiency maps?
- Most manufacturers (Chart Industries, Siemens, etc.) publish performance charts in their datasheets or technical notes.
9. References & Further Reading
- Chart Industries – Fundamentals of Turbo‑expander Design and Operation
- Simms USA – Fundamentals of Turbo‑expanders PDF
- Turbomachinery Magazine – Turbo‑expander Optimization
- ScienceDirect – Turbo‑Expanders – an overview
Source
[Hall] Rules of Thumb for Chemical Engineers, Stephen M. Hall, Elsevier, 2018, page 367
